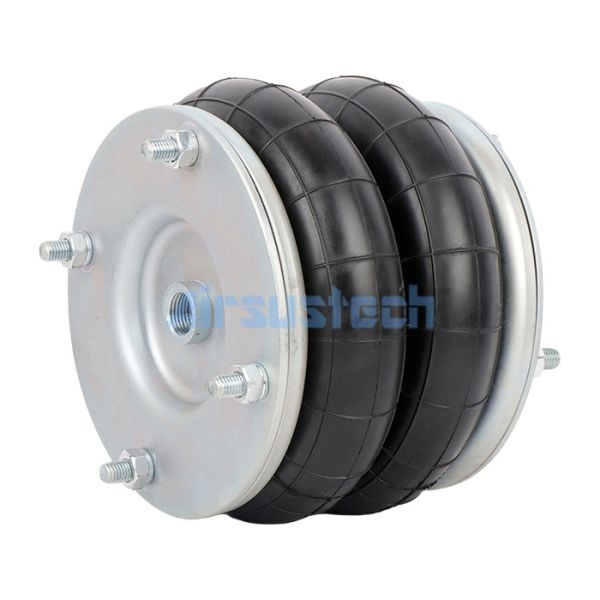

G1/2 Firestone W01-R58-4055 Double Convoluted Natural Rubber Air Spring Suspension
Product Introduction
Suspension Air Springs are air shocks designed to provide superior quality, durability and load capacity for a range of automotive applications. Made with high-grade rubber and steel, they are engineered to provide superior performance in temperatures ranging from -40℃ to +70℃. With their superior load capacity and durability, these air shocks are ideal for vehicles of all sizes, shapes and types. They are designed to provide superior shock absorption and stability, resulting in a smoother and safer ride. In addition, they are easy to install and require minimal maintenance, making them a great choice for any vehicle.
The Specifications of AIRSUSTECH 2B8×2T
Bottom Plate Alignment: Parallel
Bottom Plate Center To Center Diameter: 155.5 mm
Bottom Plate Diameter: 183.5 mm
Bottom Plate Hole Quantity: 4×M10
Bottom Plate Type: Steel
Top Plate Alignment: Parallel
Top Plate Center To Center Diameter: 155.5 mm
Top Plate Diameter: 183.5 mm
Top Plate Hole Quantity: 4×M10
Top Plate Type: Steel
Natural Height: 160 mm
Spring Type: Double Convoluted
Static Rubber Bellow Diameter: 205 mm
Air Connection: G1/2
Operation: Gas-filled
OEM Part Numbers
| Firestone W01-R58-4055 |
| Dunlop Pneuride 8''×2 |
| Dunlop Springride SP1490 |
| Contitech FD 138-18 DS |
| Norgren M/31082 |
| Parker 9109011 |
The Features of AIRSUSTECH Convoluted Air Springs
An air spring is a carefully designed rubber/fabric bellows which contains a column of compressed air. The rubber bellows itself does not provide force or support load. This is done by the column of air. AIRSUSTECH air springs are highly engineered elastomeric bellows with specially designed metal end closures. Our standard two ply air spring bellows is actually made up of four layers:
a. An inner liner of calendered rubber.
b. One ply of fabric reinforced rubber.
c. A second ply of fabric-reinforced rubber (with the cords at
a specific bias angle to the first ply).
d. An outer cover of calendered rubber.
Many of our air springs are also available in high strength construction for higher pressures. In this case, there are four plies of fabric-reinforced rubber, with an inner liner and outer cover.
