2PCS Dunlop Pneuride 8''×2 Air Spring Assembly M10 Screw for Pneumatic Applications

Name: 2PCS Dunlop Pneuride 82 Air Spring Assembly M10 Screw for Pneumatic Applications
Brand: AIRSUSTECH
Price: 1 USD

Quality 2PCS Dunlop Pneuride 8''×2 Air Spring Assembly M10 Screw for Pneumatic Applications for sale

Brand Name : AIRSUSTECH

Model Number : 2B8×2T

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou, China

MOQ : 1 pieces

Price : Negotiable

Payment Terms : T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram

Supply Ability : 1000pcs/week

Delivery Time : 3-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Manufacturer : AIRSUSTECH

Minimum Height : 72 MM

Maximum Height : 225 MM

Parker : 9109011

Structure : Double Cylinder

Compatibility : Universal

Operation : Gas-Filled

Contact Now

2PCS Dunlop Pneuride 8''×2 Air Spring Assembly M10 Screw for Pneumatic Applications

Quick Details

Manufacturer Warranty: 12 Months

Working Temperature: -40℃+70℃

Quality: 100% Tested

Origin of Place: Guangzhou, China

Packaging: Cartons Or As Customers' Request

Shipment: By Air,By Sea,By Express (DHL,UPS,FEDEX...)

HS Code: 8708809000

Product Information

Nut/Blind nuts
Nut length	25 mm
Number of screws on the top cover	4
Number of bottom cover screws	4
Top cover plate screw (nut) tooth	4-M10
Top cover screw center distance	156 mm
Screw (nut) teeth of the bottom cover plate	4-M10
Center distance of bottom cover plate screw	156 mm
Air hole/air inlet/air connector
Air hole/air inlet	1/2BSP
Cover plate
Top cover diameter	184 mm
Diameter of bottom cover	184 mm
Rubber bellows
Max. diameter of rubber bellows	230 mm
Buffer block/buffer block
Waist ring/waist ring
Strap ring: no strap ring

Superseded Part Number

Dunlop Pneuride NO.	8''×2, 8'×2, 8×2
Firestone NO.	W01-R58-4055, W01R584055, W01 R58 4055 WO1-R58-4055, WO1R584055, WO1 R58 4055
Dunlop Springride NO.	SP1490, SP 1490, SP 14 90
Contitech NO.	FD 138-18 DS, FD 13818 DS, FD 138 18 DS FD138-18 DS, FD13818 DS, FD138 18 DS
Norgren NO.	M/31082, M31082, M 31082
Parker NO.	9109011

The Applications of Flange Ring Air Springs

Mechanical equipment: such as industrial production lines, processing machinery, etc., can effectively reduce the wear and failure of machinery and equipment caused by vibration.
Air suspension system: In vehicles such as automobiles and rail transit, airbags play a shock-absorbing role and improve riding comfort.
Sound and vibration control: used in high-frequency vibration environments to reduce noise and vibration interference and protect the surrounding environment.
Construction engineering: used in earthquake-proof equipment to reduce the impact of earthquakes or external vibrations on building structures.

The Datas of Other Types Flange Connection Air Bags

Type	Plate Diameter (mm)	Max. Diameter (mm)	Min. Height (mm)	Max. Height (mm)	Total Stroke (mm)	Static Height (mm)	Center Distance (mm)	Space Installation (mm)
6×1	153	168	45	90	45	80	127	180
8×1	184	230	47	120	73	90	156	240
10×1	210	280	50	135	85	95	181	295
12×1	260	330	50	145	95	95	232	345
14 1/2×1	310	395	47	165	118	105	283	410
6×2	153	168	73	170	97	120	127	180
8×2	184	230	72	225	153	150	156	240
10×2	210	280	70	240	170	160	181	295
12×2	260	330	74	240	166	160	232	345
14 1/2×2	310	395	70	280	210	180	283	410
16×2	310	430	77	320	243	180	283	445
6×3	153	168	105	255	150	180	127	180
8×3	184	215	100	350	250	230	156	240
10×3	210	280	100	365	265	235	181	295
12×3	260	330	100	430	330	222	232	345
14 1/2×3	310	395	100	476	376	280	283	410
16×3	310	430	125	500	375	280	283	445

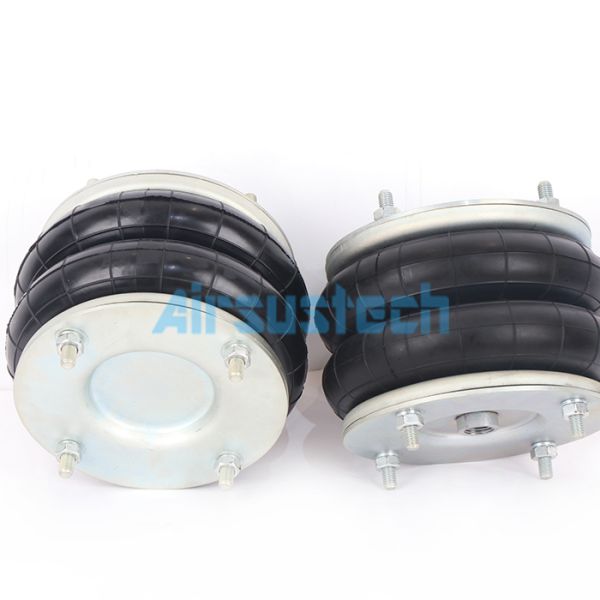

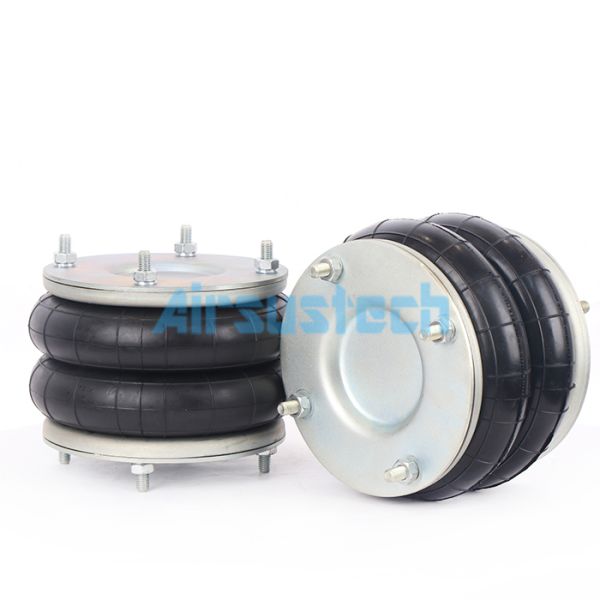

The Real Pictures of 2B8×2T

2PCS Dunlop Pneuride 8''×2 Air Spring Assembly M10 Screw for Pneumatic Applications

Factory Workshop
