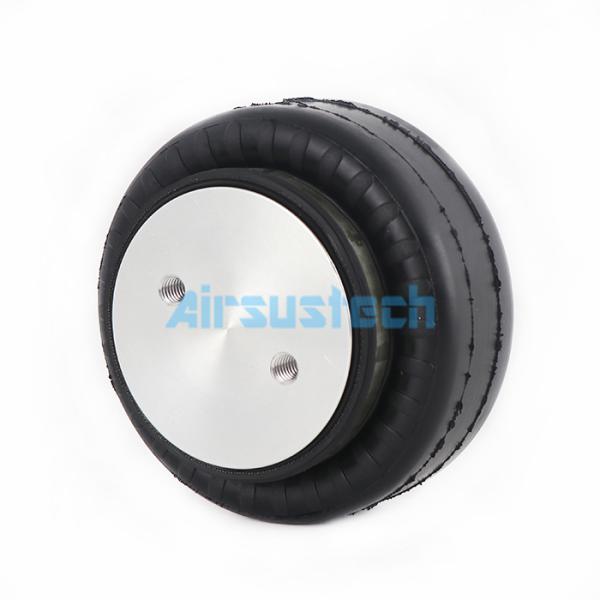

Goodyear 1B5-550 Industrial Convoluted Rubber Air Spring 1B5510S 1/4''BSP Air Inlet

Name: Goodyear 1B5550 Industrial Convoluted Rubber Air Spring 1B5510S 14BSP Air Inlet
Brand: AIRSUSTECH
Price: 1 USD

Quality Goodyear 1B5-550 Industrial Convoluted Rubber Air Spring 1B5510S 1/4''BSP Air Inlet for sale

Brand Name : AIRSUSTECH

Model Number : 1B5510

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou, China

MOQ : 1 pieces

Price : Negotiable

Payment Terms : T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram

Supply Ability : 1000pcs/week

Delivery Time : 3-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Min. Height : 50 MM

Max. Height : 120 MM

Gas Hole : 1/4''BSP

Enidine Inc. : YI-1B5-510

Maximum Diameter : 150 MM

Sample : Available

Contact Now

Goodyear 1B5-550 Industrial Convoluted Rubber Air Spring 1B5510S 1/4''BSP Air Inlet

Product Description

Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. 1B5510 air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.

Product Information

[1] Cover Plate Diameter	85 mm
[2] Center-to-Center Distance	44.5 mm
[3] Compressed Height	50 mm
[4] Extended Height	120 mm
[5] Full Stroke	70 mm
[6] Max. Outside Diameter	150 mm
[7] Screw Nuts Type	2×3/8''UNC
[8] Material	Rubber and Steel

Other OEM Numbers

Goodyear 1B5-550
Goodyear Bellow NO. 579-91-3-501
Enidine Inc. YI-1B5-510

The Applications of Rubber Air Shock Springs

Mould separation machines (air cushions)
Roll leveling machines (airbags)
Three-dimensional vibration tables (air bladders)
Rubber vibration tables (air cushions)
Roller friction brake machines (air springs)
Conveyors (air pads)
Straightening machines (air springs)
Vehicle air suspension systems
Gate valve actuator air springs
Forming presses (air bladders)
Cable tensioners (airbags)
Pipe threading machines (air pads)
Tobacco machinery (airbags)
Analytical instruments (airbags)
Secondary lifting equipment (air bladders)
Missile transport equipment (air bladders)

Other Single Convoluted Air Suspensions

1B5-500	1B5-502	1B5-503	1B5-510
1B5-512	1B5-520	1B5-521	1B6-530
1B6-531	1B6-532	1B6-535	1B6-538
1B7-540	1B7-541	1B7-542	1B8-550
1B8-551	1B8-552	1B8-553	1B8-554
1B8-560	1B8-562	1B8-564	1B9-201
1B9-202	1B9-204	1B9-207	1B9-208
1B12-301	1B12-304	1B12305	1B12-313
1B14-350	1B14-351	1B124-352	1B12-353
1B14-362	1B14-364	1B15-375	1B15-376
1B15-377	1B15-378
